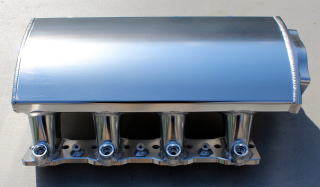

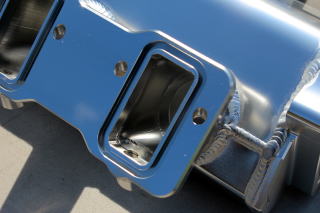

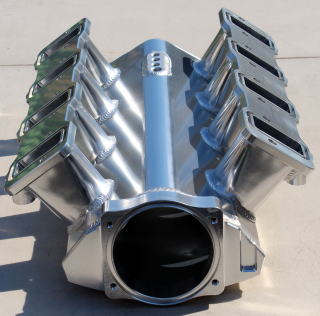

LS3/L92 102mm EFI Fabricated
Aluminum Sheet Metal Intake Manifold
81003CA
Clear Anodized 84,000円
Specifications
| Injection Style | Multi-port |
| Fuel Rail Type | Custom TSP Design |
| Fuel Rails Included | No |
| Throttle Body Bore Size | 102mm |
| Throttle Body Bolt Pattern | Standard OE 4-Bolt Pattern |
| Throttle Body Flange Angle | 15° |
| Throttle Body Included | No |
| Flange Material | T-6061 Billet Aluminum |
| Plenum Thickness | 3.5mm |
| Plenum Material | T-6061 Sheet Aluminum |

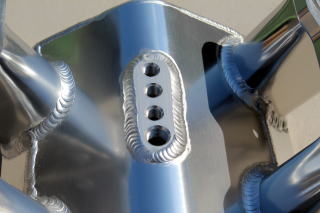

| Vacuum Ports | NPT 1/8 x 3 and NPT 1/4 x 1 |
| Overall Height | 6 3/4" |

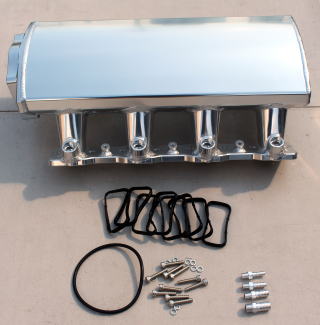

| Included | Port O-Rings and Hardware |
Fitment
CHEVROLET SMALL BLOCK V8 GEN. III/IV
(LS-BASED)
- 4.8 L / 293 in3 (L20, LY2)
- 5.3 L / 325 in3 (LC9, LH6, LH8, LMG, LY5)
- 6.0 L / 364 in3 (L76, L96, LFA, LY6)
- 6.2 L / 376 in3 (L92, L99, LS3, LSA)
NOTES
- Fits LS-based engines with "rectangular" intake port shape only
