商 品 名

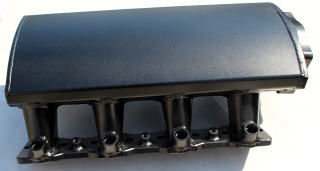

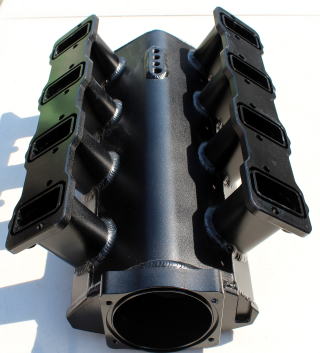

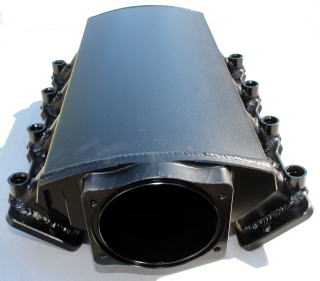

LS3/L92 102mm EFI Fabricated
Aluminum Sheet Metal Intake Manifold
81003BK
Black Anodized 84,000



Specifications

Injection Style Multi-port
Fuel Rail Type Custom TSP Design
Fuel Rails Included No
Throttle Body Bore Size 102mm
Throttle Body Bolt Pattern Standard OE 4-Bolt Pattern
Throttle Body Flange Angle 15°
Throttle Body Included No
Flange Material T-6061 Billet Aluminum
Plenum Thickness 3.5mm
Plenum Material T-6061 Sheet Aluminum
Vacuum Ports NPT 1/8 x 3 and NPT 1/4 x 1
Overall Height 6 3/4"

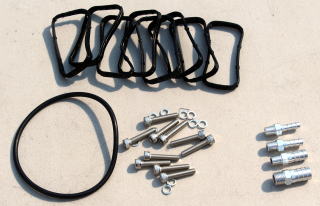

Included Port O-Rings and Hardware

Fitment

CHEVROLET SMALL BLOCK V8 GEN. III/IV
(LS-BASED)

  • 4.8 L / 293 in3 (L20, LY2)
  • 5.3 L / 325 in3 (LC9, LH6, LH8, LMG, LY5)
  • 6.0 L / 364 in3 (L76, L96, LFA, LY6)
  • 6.2 L / 376 in3 (L92, L99, LS3, LSA)

NOTES

  • Fits LS-based engines with "rectangular" intake port shape only
