Optional Inline High Flow Fuel Pump Accessories

  • 50-200-06: -6AN Discharge Fitting
  • 50-200-08: -6AN to -8AN Discharge Fitting with Integral Check Valve
  • 50-200-10: -10AN Inlet Port Fitting
  • 50-200-11: -10AN Inlet Port Filter
  • 50-200-86: -6AN to -8AN Discharge Fitting

  商 品 名

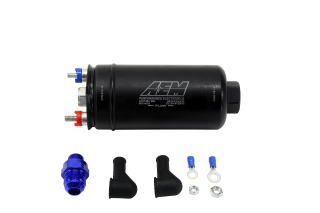

AEM High-Flow External Electric Fuel Pump



Weight 35.8 oz (1,015 g)
Outside Diameter 60mm OD
External Materials Black plated steel with laser etching, with zamac discharge end cap
Inlet Fitting -10AN 7/8"-14 Female
Outlet Fitting -6AN 9/16"-18 Female
PRV Activation 150 PSI
Impeller Design Roller vane with ceramic end plate


Connector Terminal 6mm stud positive, 5mm stud negative
Min Voltage Input 10 volts
Max Voltage Input 18 volts
Current Draw (40 psi) 9.73 amps no check valve, 10.68 amps with check valve (13.5v)
Current Draw (120 psi) 16.07 amps no check valve, 17.13 amps with check valve (13.5v)
Fuse 25 amps (13.5v), 30 amps (13.5v) MAX

Power rating given at 43 PSI, 13.5v at the pump with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.

Sending Unit  Included
 Free Flow Rate 385 lph
Maximum Pressure  90 PSI
 Inlet Quantity One
Inlet Size  -10 AN O-Ring
Inlet Attachment  Female Attachment
Outlet Quantity One
Outlet Size  -6 AN O-Ring
Outlet Attachment   One
